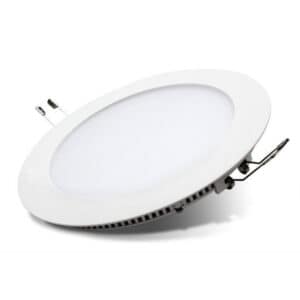

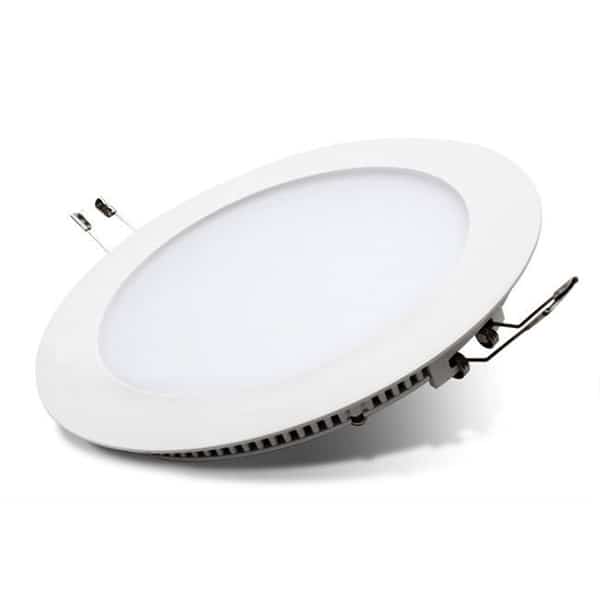

LED Aeroslim

Aeroslim is a stylish range of ultra-slim round LED panels, available in small, medium and large sizes and suitable for recessed or surface installation. Aeroslim combines first class performance, very high reliability and ease of installation. Due to its ultra-slim design it is suitable for installation where ceiling void space is at a premium.

Call 0161 494 2118 or email [email protected] for our best price

Description

Aeroslim is a stylish range of ultra-slim round LED panels, available in small, medium and large sizes and suitable for recessed or surface installation. Aeroslim combines first class performance, very high reliability and ease of installation. Due to its ultra-slim design it is suitable for installation where ceiling void space is at a premium.



Useful Information: Product Codes

AL-Aero-8-WW
AL-Aero-8-NW
AL-Aero-8-CW
AL-Aero-12-WW
AL-Aero-12-NW
AL-Aero-12-CW
AL-Aero-18-WW
AL-Aero-18-NW
AL-Aero-18-CW

Specification

Product CodeDescriptionPower [W]Colour Temp [K]Lumen [Im]CRIBeam AngleVoltage [AC]IPD [mm]Cut-Out [mm]H [mm]
LED Aeroslim Small (145mm)
AL-Aero-8-WWAeroslim Round Small WW83200720>85110°110-2404414512530
AL-Aero-8-NWAeroslim Round Small NW84000720>85110°110-2404414512530
AL-Aero-8-CWAeroslim Round Small CW85500720>85110°110-2404414512530
LED Aeroslim Medium (180mm)
AL-Aero-12-WWAeroslim Round Medium WW12121800>85110°110-2404418016030
AL-Aero-12-NWAeroslim Round Medium NW1240001800>85110°110-2404418016030
AL-Aero-12-CWAeroslim Round Medium CW1255001800>85110°110-2404418016030
LED Aeroslim Large (240mm)
AL-Aero-18-WWAeroslim Round Large WW1832001620>85110°110-2404424022030
AL-Aero-18-NWAeroslim Round Large NW1840001620>85110°110-2404424022030
AL-Aero-18-CWAeroslim Round Large CW1855001620>85110°110-2404424022030

Data Sheet

Download Data Sheet

Aeroslim-LED-1

Aeroslim-LED-2

Warranty

5 year guarantee

Application

  • Residential
  • Hotels
  • Bars
  • Shops
  • Restaurants
  • Offices

How to Order

Call 0161 494 2118 to speak to a member of the AuraLED team.

IES FILES

Please email us at [email protected] and our sales team will send you the desired IES file.
