Quadra LED

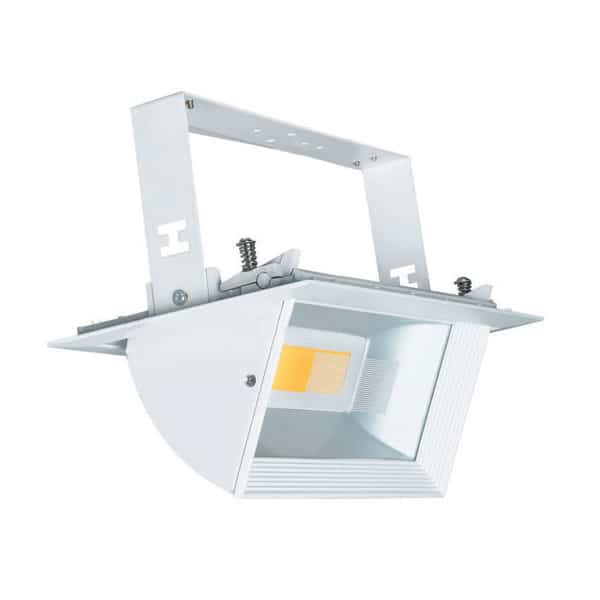

Quadra LED is a vertically adjustable square LED luminaire suitable for various display applications, e.g. shops, museums and other commercial applications.

Call 0161 494 2118 or email [email protected] for our best price

Description

Quadra LED is a vertically adjustable square LED luminaire suitable for various display applications, e.g. shops, museums and other commercial applications.



Useful Information: Product Codes

AL-RTSCOB-30-WW
AL-RTSCOB-30-CW
AL-RTSCOB-45-WW
AL-RTSCOB-45-CW

Specification

Product CodeDescriptionPower [W]Lumen [Im]CRIBeam AngleVoltage [AC]IPD [mm]W [mm]H [mm]Cut-out W [mm]Cut-out D [mm]
AL-RTSCOB-30-WWRTSCOB 30W WW302250-2550>8090°100-24020235136146220132
AL-RTSCOB-30-CWRTSCOB 30W CW302250-2550>8090°100-24020235136146220132
AL-RTSCOB-45-WWRTSCOB 45W WW453375-3825>8090°100-2402023514698220132
AL-RTSCOB-45-CWRTSCOB 45W CW453375-3825>8090°100-2402023514698220132

Data Sheet

Download

quadra-led-catalogue

Application

  • Shops
  • Hotels
  • Restaurants

How to Order

Call 0161 494 2118 to speak to a member of the AuraLED team.

IES FILES

Please email us at [email protected] and our sales team will send you the desired IES file.
