LED Strip

AL-NANO Sign Light

IP66 Waterproof
Quick-fix brackets
190 lumens per watt
5 year parts warranty Sections up to 6100mm Manufactured to any length

Minimum length 300mm. Sizes greater than 6100mm supplied in two or more sections and will be joined with a middle connector.

Product Details


AL- NANO is the most waterproof LED sign light in the UK, sealed to IP66. The high-efficiency LED strip technology inside AL-NANO consumes only 11.5 watts per metre and has an unrivalled 190 Lumens per Watt efficiency, that’s an an impressive 2185 lumens per metre. Premium Tridonic LED drivers are enclosed in a sleek 45mm aluminium profile.

Installation is fast and easy thanks to the quick-fix brackets and our precision-engineered ‘plug & play’ middle connector system when inking two or more units. It is maintenance free, and with a 5 year parts warranty you can ‘fit and forget’.

Available in 6K,4K and 3K

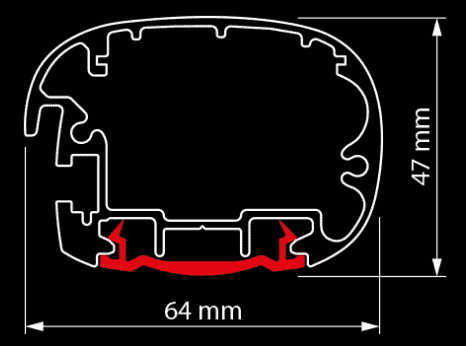

  • Slim 45mm aluminium profile*
    Dust and water tight – sealed to IP66
    Length: Any size to nearest millimetre
    (300mm minimum – 6100mm maximum per section) Magnifying lens with built in gasket
    Internal Tridonic LED drivers**
    2185 Lumens per metre light output
    11.5 watts per metre

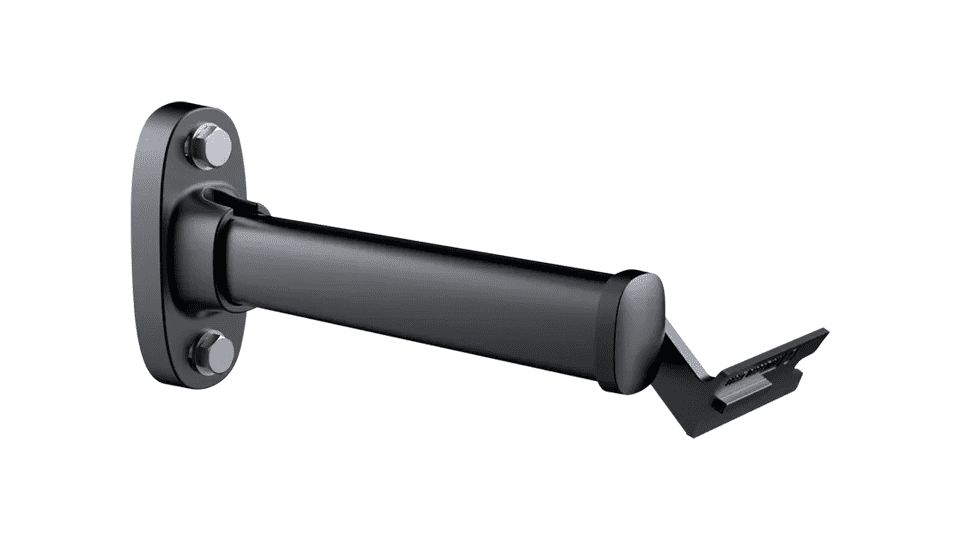

    Quick-fix brackets

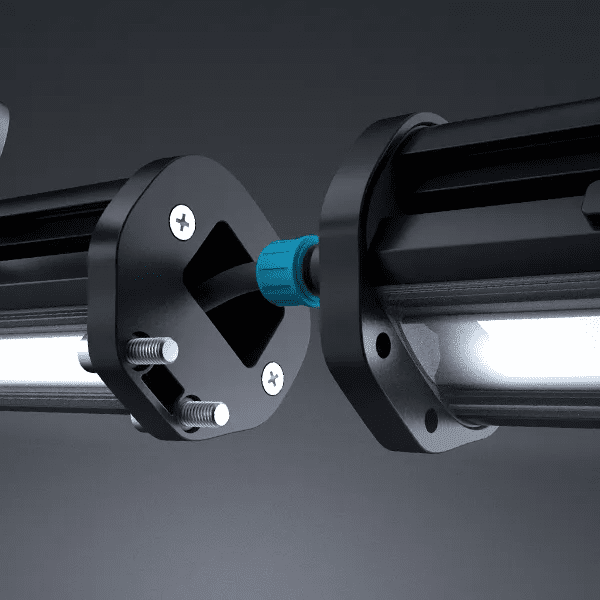

  • 2 part fully sealed middle connector system
    5 year parts warranty
    Conforms to EN65958 electrical safety requirements





Give us a call on 0161 494 2118
